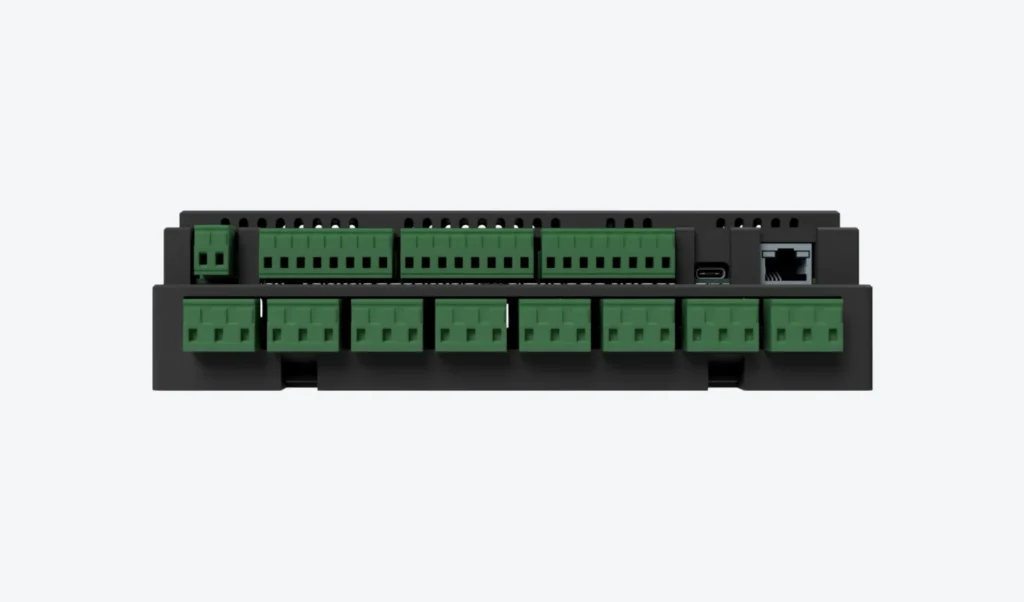

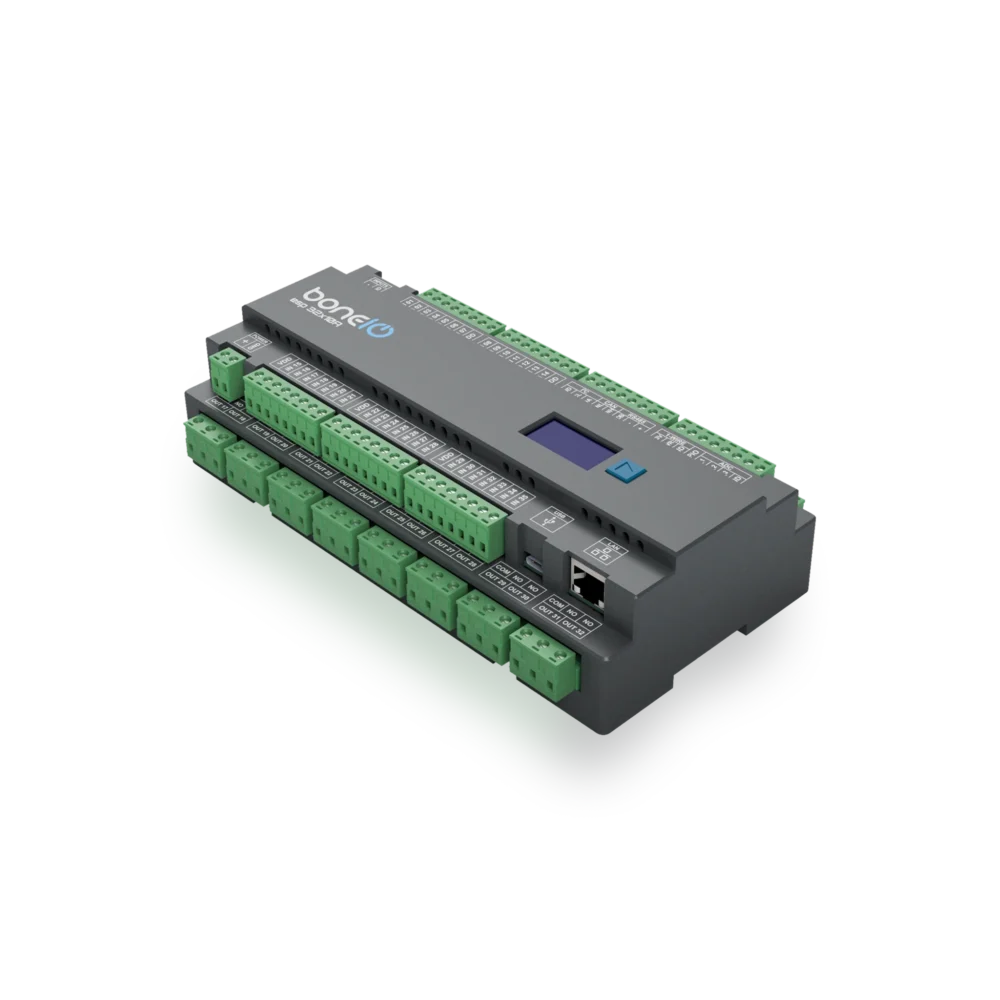

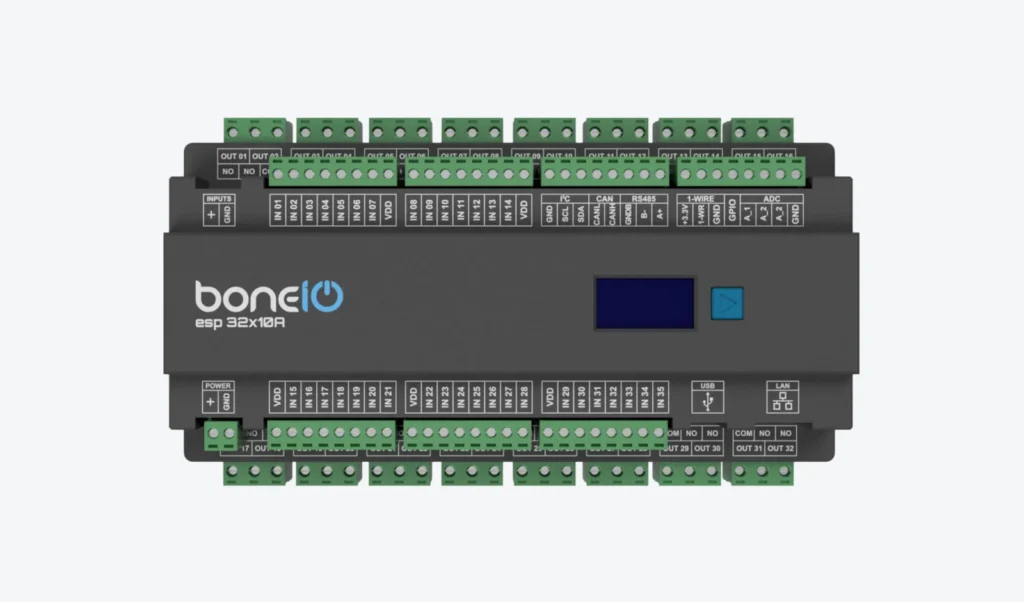

boneIO ESP 32x10A
boneIO ESP with 32 outputs. Each rated with 10A maximum current. It’s designed especially to control lights in your house.
1799,00zł 1462,60zł ex. VAT
In stock
Description
The core of your smart home, serving as the ultimate controller
Home Assistant is an open-source home automation system that prioritizes local control and privacy.
Configuration is a breeze directly from your Home Assistant interface. Having Home Assistant is crucial for this controller (or planning to implement it in your household).
- lights,
- garage gate,
- locks,
- water pumps,
- watering garden
- and everything which goes ON/OFF with maximum current up to 10A.
- wall switches,
- motion detectors,
- window reed switches
- and everything which will give you signal up to 24V
Unlock endless automation possibilities: open covers at sunrise, close at sunset, regulate blinds by temperature, control tilt—everything under your command!
Energy efficiency optimization, innovative solutions with boneIO ESP
Recuperators, air conditioners, pv systems, power meters and so on. With recuperator you can turn it to slow air supply when you’re out to save energy.
So you got fresh air in house all the time together with energy saving. You can connect sensors from multiple PV systems, so all sort of energy managment possibilities open up to you.
Together with outputs you can control your heating system through powering thermostatic head in your floor heating and closing it when place getting warmer.
Our controller, one of the smallest on the market at just 12 DIN size, offers a myriad of interfaces in a sleek package. Say goodbye to bulky electrical cabinets; with this controller, you can transform any space into a smart home powerhouse!
Our warranty is client happiness first! You have 2 years warranty for the controller and lifetime help-desk. If need to replace anything you just plug out connectors and take out controller with no hassle.
Additional information
| Power supply | 24VDC |
|---|---|
| Power consumption | 5W-18W |
| Number of digital inputs | 35 |
| Inputs voltage | 24VDC |
| Number of outputs | 32 |
| Max output voltage | 230VAC |
| Max output current | 10A |
| Analog Inputs | 3 |
| External interfaces | Modbus RS485, |
| Communication | Ethernet 10/100Mbit |
| Dimensions | 216mm x 106mm x 57mm (WxHxL) (without plugs) |
| Weight | 800g |
